STATIC PASS BOXES SPECIFICATION

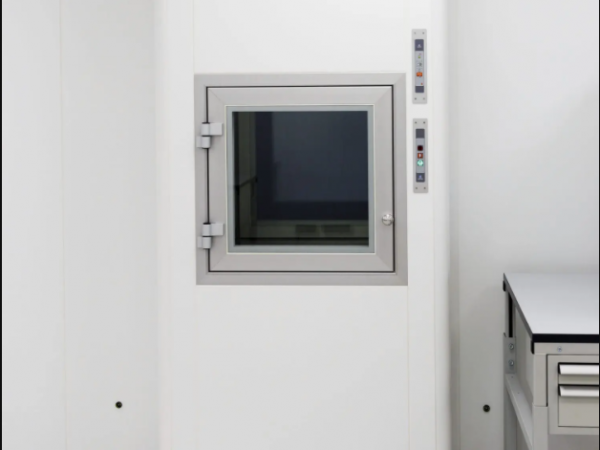

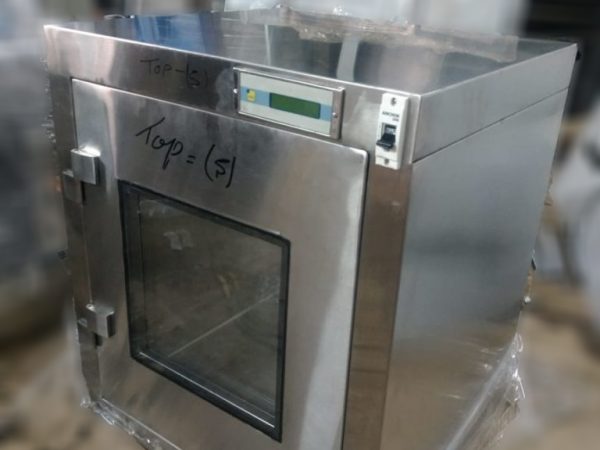

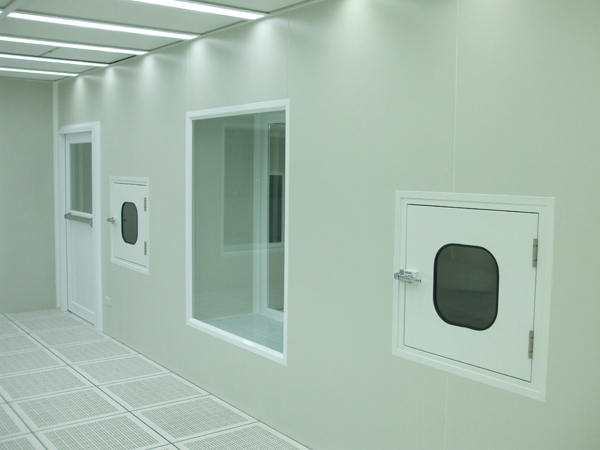

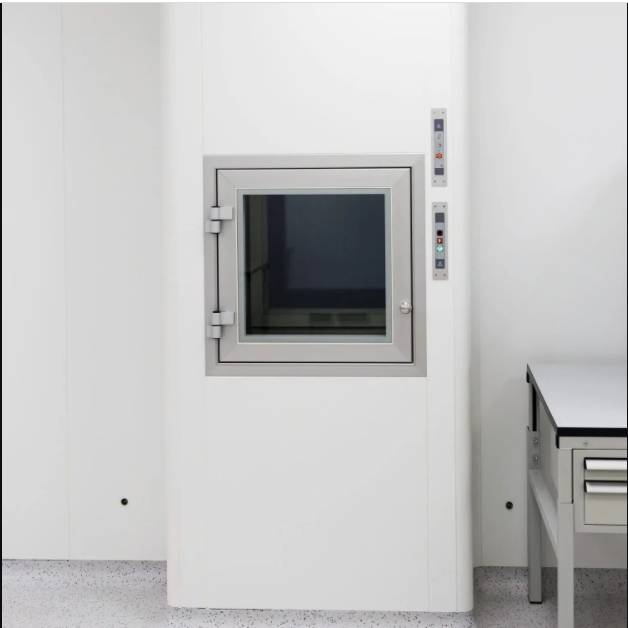

Static Passbox is known to transfer materials between two equally clean environments and are designed to work with minimal personnel movement.
Features:
* constructed in SS 304/ 316 in Double skin doors and toughened glass view panels.
* Mechanical or electronic interlock system with controller ensures two doors can’t open at the same time.
* UV light with Hour meter turns on when another door on the other side is opened.
| Specifications | Description |
|---|---|
| TYPE | FLOOR HATCH/WALL MOUNTED |
| MOCK | SS 304/ SS 316 |
| FINISH | MATTE/ MIRROR |
| DOOR | SS 304 DOUBLE WALLED DOORS WITH VIEW PANEL |
| DOOR INTERLOCKING | ELECTRO MAGNETIC INTERLOCKING/ MECHANICAL INTERLOCKING WITH CONTROLLER |
| INDICATORS | INDICATOR & BUZZER IS PROVIDED FOR DOOR INTERLOCKING SIGNAL |
| LIGHTS/SWITCHES | LED LIGHTS & ON/OFF SWITCHES FOR BLOWER & LIGHTS |

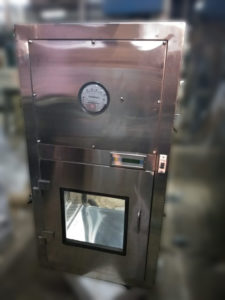

| Dynamic Passbox | Static Passbox |
|---|---|
| Transfer from uncontrolled environment to controlled environment | Transfer materials between two rooms of equal cleanliness levels. Should never be used to transfer material between a clean room and a non-clean room. |
| Interlocked doors located on all sides. Protects from being polluted while transferring. | Electromagnetic interlocking arrangement which is located between two doors. Arrangement is fitted with a LED indicator which helps to show if door open. |
| It is fitted with filter, pressure gauge and motor blower to blow out the dust particles. | It doesn’t have filters as it’s designed to as airlock equipment. |
